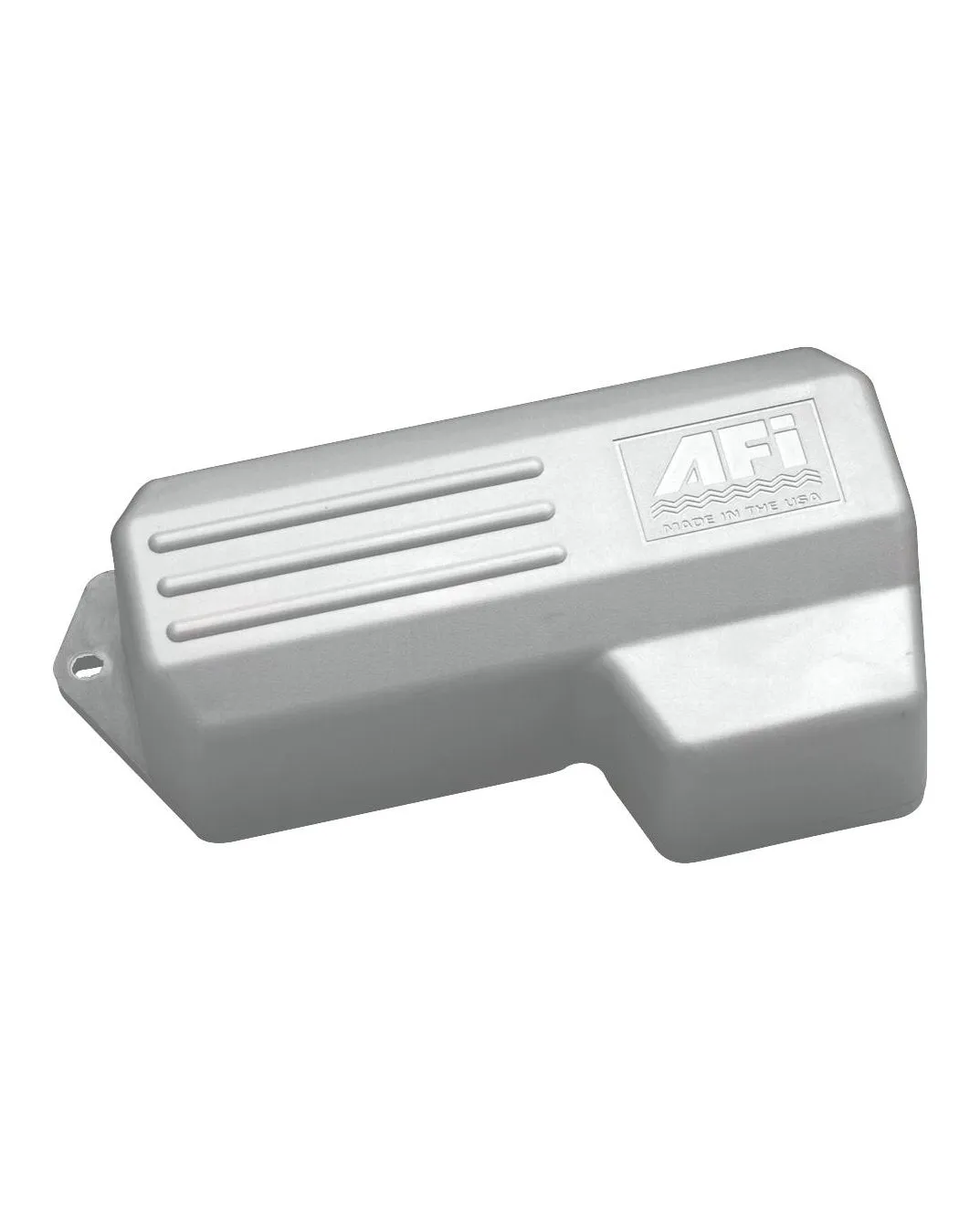

The AFI 1000 heavy duty wiper motor is fully waterproof with a thermoplastic cover and powers wiper arm & blade combinations up to 450mm (18") length. 2 drive shaft lengths are avaiable.
- Fully waterproof heavy duty motor
- Sealed UV resistant thermo-plastic cover
- Solid brass 16mm diameter drive shaft and knurled nut
- Single speed motor
- Coast to park feature. Adjustable right or left park.
- RF shielded circuitry
- 110 deg sweep angle. Adjustable 50, 65, 80 or 110 degrees
- Includes 5 amp fuse & fuse holder
- Full 3 year limited warrenty. CE certified.
No load current 0.8 to 1.2 amp. Stall current 10 amps.
Stall torque 63kgf/cm 6.2 Nm
Motor Length : 169mm Width : 84 Depth : 51mm - plus drive arm
12 volt only. 2 shaft lengths are available
